Figures

pip install 'nook[plot]'
python demos/make_figures.py                    # RIPL-3 figures only
python demos/make_figures.py ~/ensdf            # everything

Every function returns matplotlib’s (figure, axes), so nothing is a dead end — keep adjusting before you save. PDF output is vector, for LaTeX \includegraphics. Full signatures live in the nook.plotting API reference.

The RIPL-3 figures draw from the committed mirror, so they regenerate with no external data; the ENSDF figures need a local distribution and are skipped with a note when it is absent.

Design

Two decisions drive the look.

Type. Latin Modern with Computer Modern mathtext: the same faces as the LaTeX body text these figures sit beside. Matplotlib’s DejaVu default is what gives away a figure made in a hurry.

Colour encodes parity. Positive and negative parity get their own hue, so the parity structure of a band is visible before a single label is read. Unassigned parity stays grey, so missing data looks missing.

Everything else is restraint: hairline rules, no gridlines, no boxes, and labels that move out of each other’s way rather than overprinting.

Where a label cannot avoid a stroke — a feeding arrow crossing its own annotation, a dodge leader reaching its number — it carries a soft halo in the paper colour. That is invisible against blank paper and only appears where it is doing work.

Placement is rule-based first (dodge this column, stagger that one along its arrow) and then measured: separate_labels() renders the figure, finds overlapping pairs in pixels, and nudges them vertically until none remain. Rules alone got 225 of 233 real decay schemes clean; the measured pass takes it to 428 of 428 across fifty mass chains, which is what the test asserts. The lesson was that tuning offsets against one figure looks finished long before it is.

Level schemes

from nook.plotting import plot_level_scheme

scheme = el.level_scheme("180Ta", source="file")
fig, ax = plot_level_scheme(scheme, limit=12)

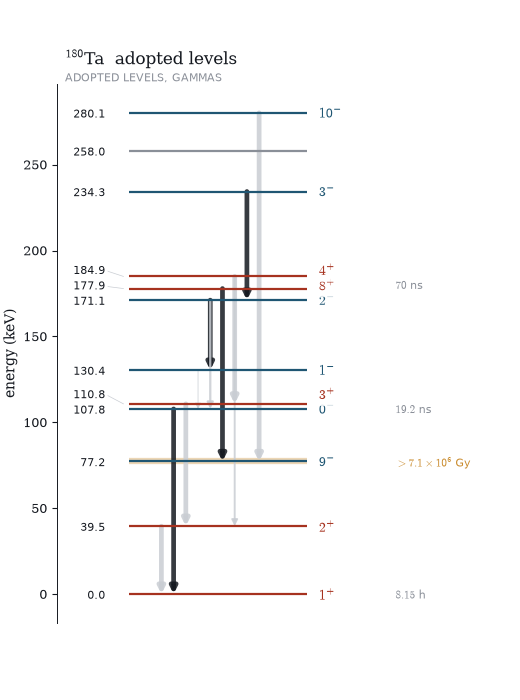

Levels are horizontal rules on an energy axis; transitions run downward from the level they depopulate, with width tracking intensity on a square-root scale — linear makes everything but the strongest invisible, log flatters the weakest. Arrows fan across the level so a cascade reads as several transitions rather than one thick line.

limit caps the level count from the bottom up. A 240-level scheme drawn in full is a black rectangle.

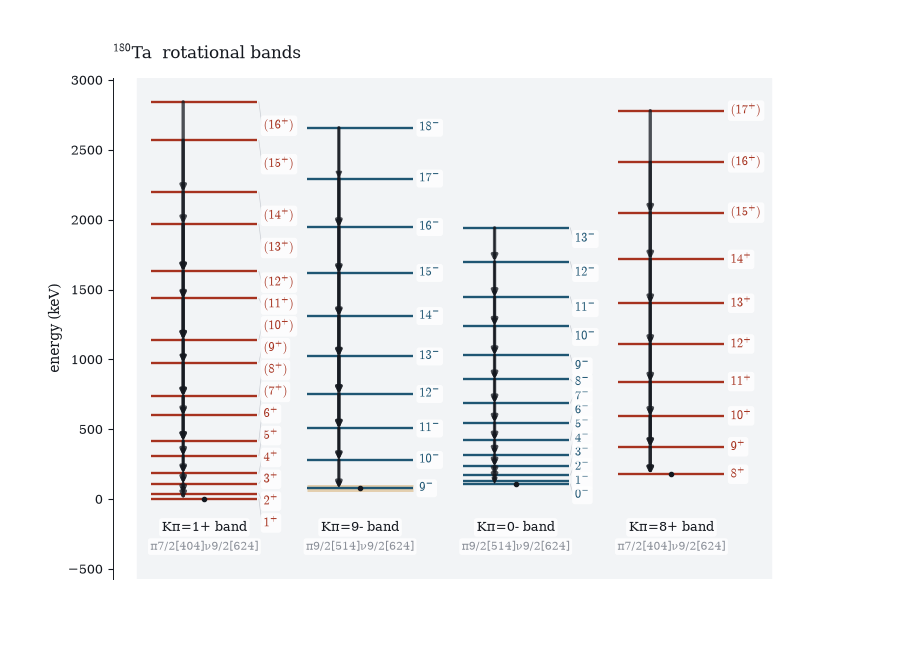

Band schemes

fig, ax = plot_band_scheme(scheme, max_bands=4, max_energy=3000)

One column per rotational band, ordered by bandhead, each tinted and captioned with its decoded BAND() text and Nilsson configuration. The K-isomer then reads as its own structure instead of being interleaved into a single crowded ladder — and the Gallagher–Moszkowski pairing is visible directly, since the 1⁺/8⁺ doublet shares a configuration with the same colour.

Decay schemes

decay = next(d for d in el.decay_schemes("180Hf") if "180LU" in d.dsid)
fig, ax = plot_decay_scheme(decay)

Parent above, daughter ladder below, feedings leaving the parent bar at their own point and running diagonally to their level. Because departure point and arrival energy increase together, the fan never crosses itself — which right-angled routing could not manage. The levels need only enough width to carry a label, so the arrows get the rest of the horizontal budget — a third of the figure against a fifth for the levels.

The two quantities get separate channels: arrow width is intensity, arrow darkness is log ft, dark meaning fast. Printing every log ft beside its arrow works for four or five branches and turns to noise past that, so only the extremes are labelled in place — fastest, slowest, and strongest branch — with the rest carried by a slim log ft scale. annotate= overrides the count.

Intensities are drawn per 100 parent decays whenever the dataset has an N record, and the subtitle says which scale you got, because relative intensities are meaningless outside their own dataset.

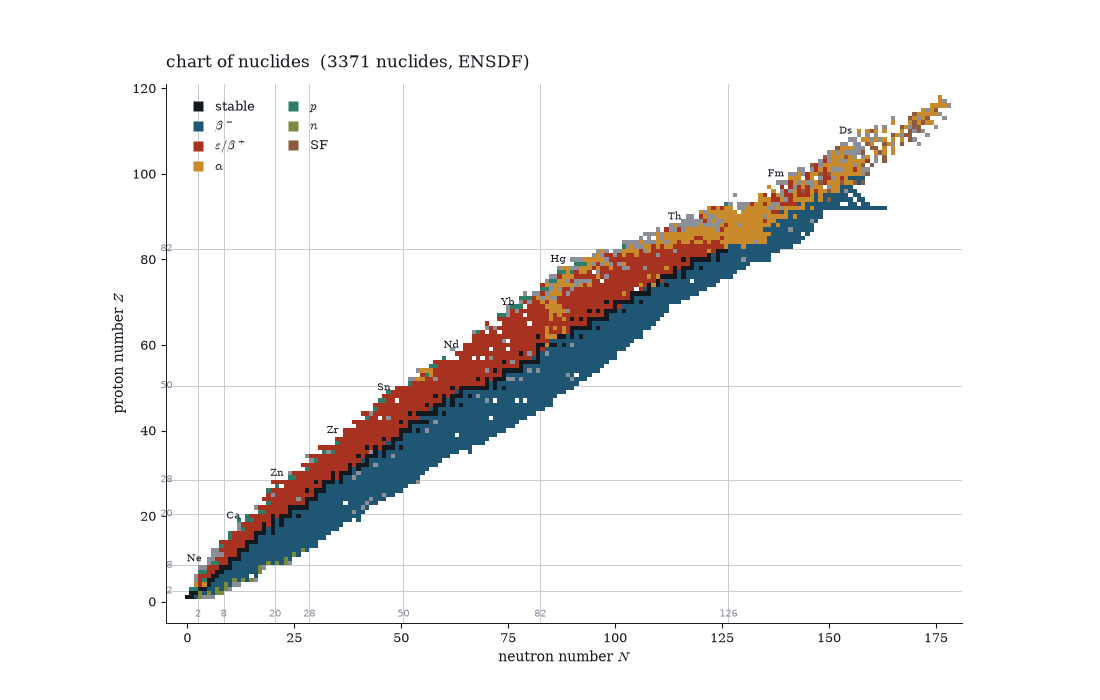

Chart of nuclides

from nook.survey import survey
from nook.plotting import plot_chart

states = survey(path="~/ensdf")          # one pass over every mass chain
fig, ax = plot_chart(states, colour_by="decay")

survey() walks every local mass chain and returns a NuclideSummary per nuclide — 3168 of them from a full distribution — cached to JSON beside the data. Magic numbers are ruled because they are the coastline everyone navigates by.

colour_by="decay" uses the field’s categorical convention, re-hued to match the rest of the package. The dominant branch is the largest one, read from the % branchings, not a fixed precedence: ²³⁸U has both α and SF open and α is six orders of magnitude stronger.

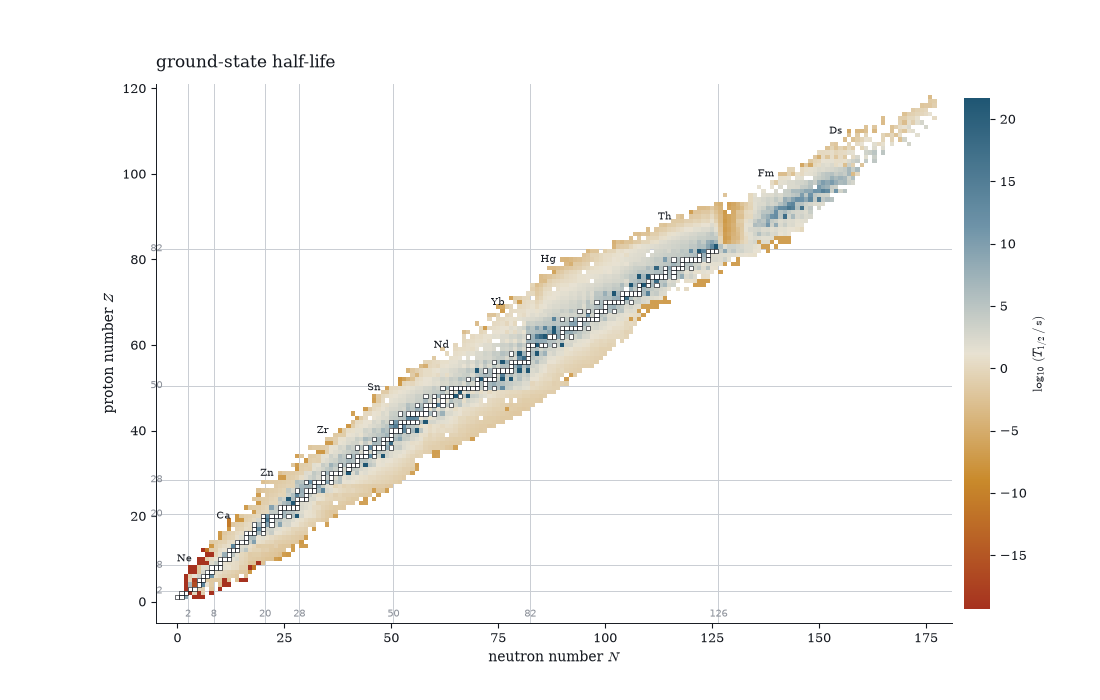

Any numeric attribute gets a continuous ramp instead:

Stable nuclides keep a dark outline under any ramp, so the valley stays legible.

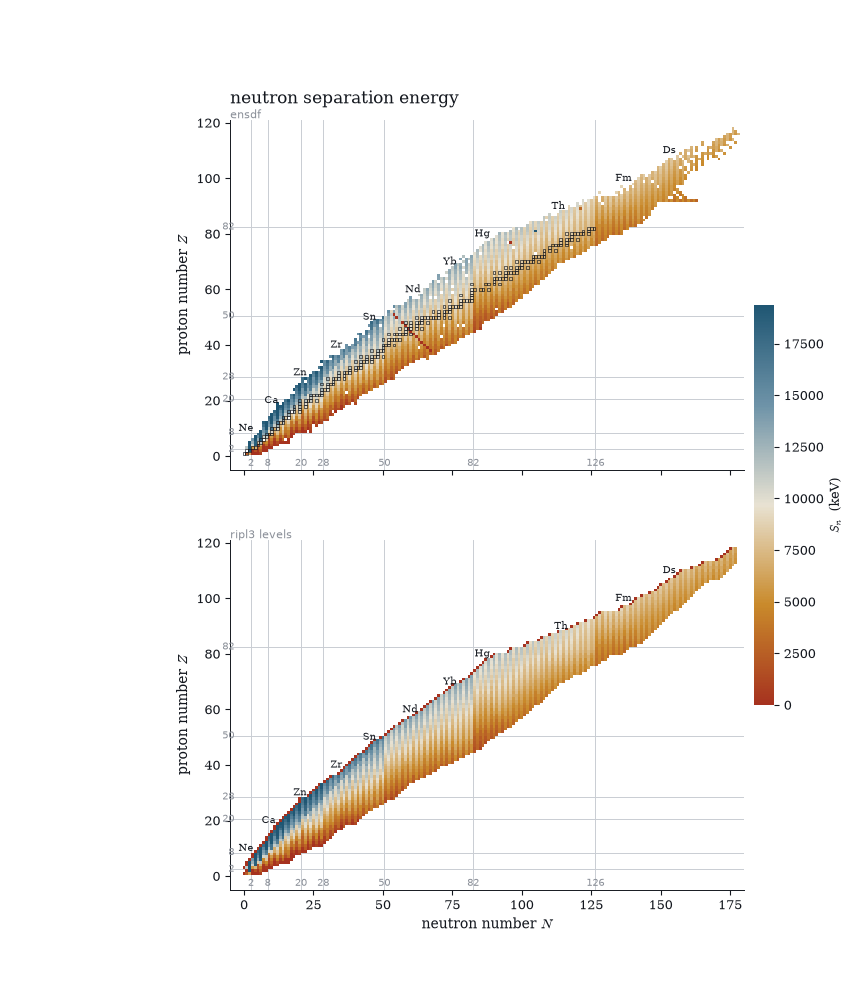

Where a second backend carries the same quantity, plot_chart_panels stacks one panel per source on a single shared scale — separate scales would compare nothing. RIPL’s levels headers carry S(n) derived from its own mass table, so agreement with the ENSDF Q-record values is a cross-backend consistency check:

from nook.plotting import plot_chart_panels

ripl_sn = ...   # states built from Ripl3Source().sn_table(); see the demo
plot_chart_panels([("ensdf", states), ("ripl3 levels", ripl_sn)],
                  colour_by="s_n")

The S(n) chart is also a check on the parser: the shell closures at N = 20, 28, 50, 82 and 126 fall straight out of the Q records as sharp drops, and the odd–even staggering stripes both panels identically. The few red streaks that appear only in the ENSDF panel are the transcription errors the repaired chart below deals with.

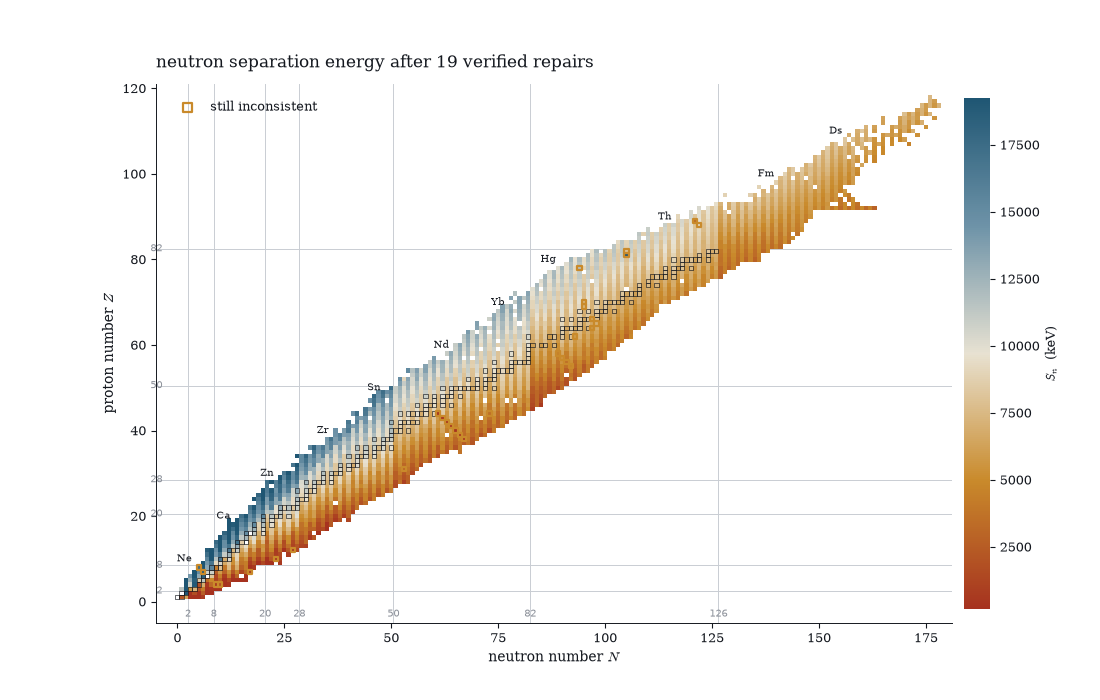

mark= rings a set of nuclides. Combined with repair() this shows both what was corrected and what still is not trusted:

fixed, changes = repair(states)
suspect = {state.nuclide for state, _ in inconsistencies(fixed)}
plot_chart(fixed, colour_by="s_n", log=False, mark=suspect,
           mark_label="still inconsistent")

Twenty-two verified repairs, and the nine nuclides still flagged are ringed — written up individually in suspicious entries.

GDR Lorentzians

from nook.plotting import plot_gdr

src = el.Ripl3Source()
fig, ax = plot_gdr(src.gdr("181Ta"))

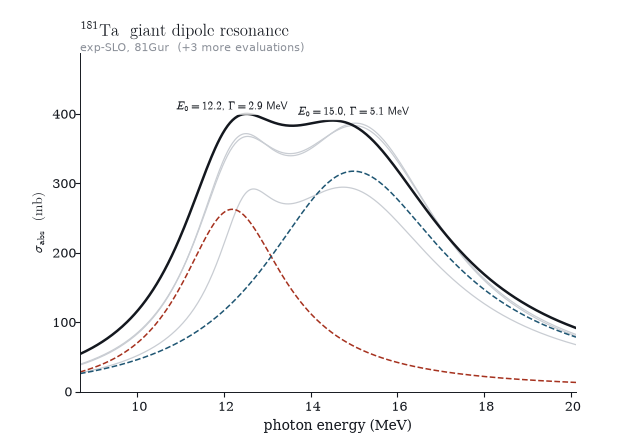

The exp-SLO parameters are a Lorentzian parameterisation, so the figure draws them through the standard shape — components dashed in the two package hues, their sum in ink, other references as thin grey sums so the evaluation spread is visible without competing. ¹⁸¹Ta is deformed, and the split between the two components is the deformation.

MLO and theoretical entries are deliberately not drawn as curves: MLO widths are temperature-dependent, and the theory table carries no peak cross-section, so rendering either through the SLO shape would present a curve the record does not contain.

Gamma strength functions

fig, ax = plot_gsf(src.gsf("56Fe"), sn_kev=src.levels("56Fe").sn_kev)

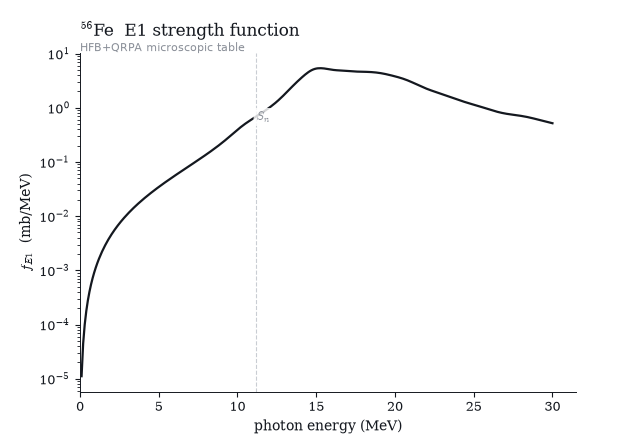

The microscopic (HFB+QRPA) E1 table on a log axis, with a hairline at the neutron separation energy — the point below which capture calculations actually sample the curve, four orders of magnitude under the GDR peak that dominates the plot.

Level densities

fig, (ax_rho, ax_cum) = plot_level_density(
    src.hfb_density("57Fe"), scheme=src.fetch("57Fe"),
    ct=src.levels_param()[(26, 57)],
)

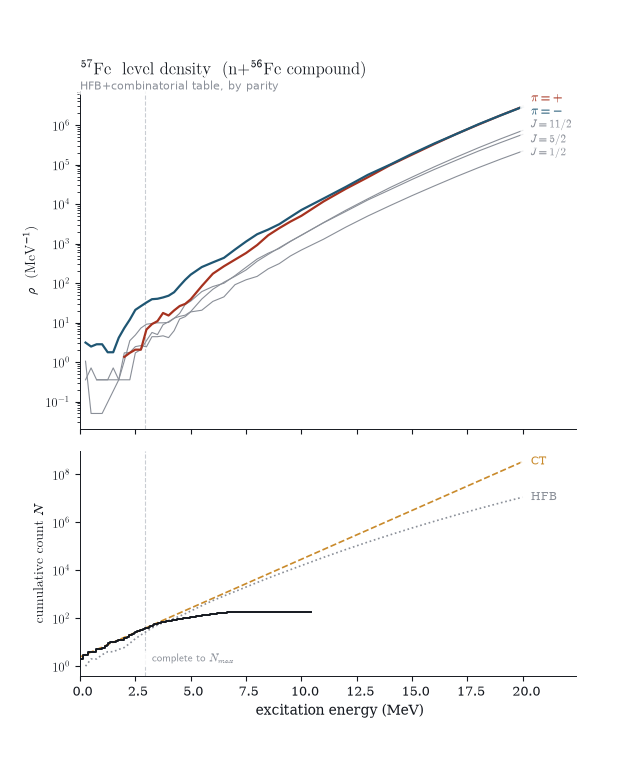

One story on a shared energy axis, for ⁵⁷Fe — the n+⁵⁶Fe compound system, which is how RIPL keys its density tables. The top panel is the HFB density by parity: the one figure in the gallery where the parity palette is not a labelling convention but the physics itself, plus a few spin-resolved curves in grey. The bottom panel sets the discrete-level staircase against the constant-temperature fit and the HFB cumulative count.

The hairline spanning both panels is RIPL’s own completeness cutoff Nmax. Where the staircase falls away from the model curves above the line, levels are missing from the evaluation, not from nature — that divergence is the figure’s point, and the reason the discrete and statistical descriptions have to be spliced somewhere. The resonance spacing D0 these densities are normalised against lives in the resonance chart.

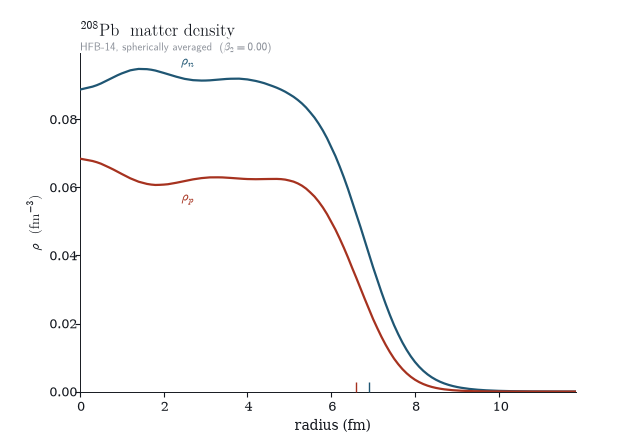

Matter densities

fig, ax = plot_matter_density(src.matter_density("208Pb"))

Neutron and proton radial profiles in the colours every reader guesses unprompted — neutrons blue, protons red — labelled inline instead of with a legend. The baseline ticks mark each species’ half-central-density radius, so the neutron skin is a visible offset between two ticks rather than a number in a caption.

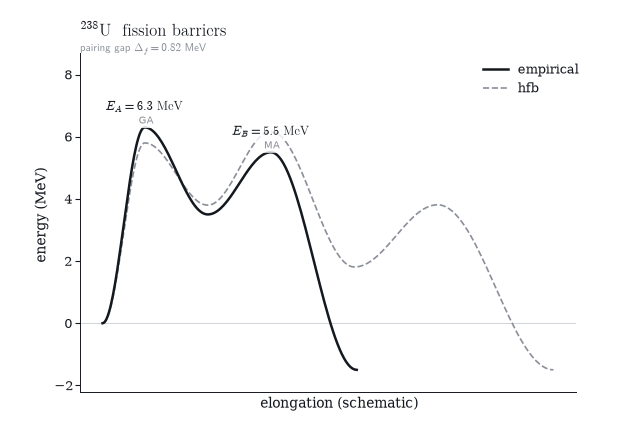

Fission barriers

fig, ax = plot_fission_barriers(
    src.fission_barriers("238U"),
    overlay=src.fission_barriers("238U", model="hfb"),
)

The double-humped potential the barrier parameters describe. Heights and curvatures are the evaluated numbers — saddle widths scale with 1/ħω — and everything else is presentation, which is why the deformation axis says schematic on it. The overlay pins the HFB saddles onto the empirical positions so the comparison reads as heights, not shapes; symmetry codes (GA axially asymmetric, MA mass asymmetric) sit under each annotation.

Mass models against experiment

table = src.mass_table()
fig, axes = plot_mass_residuals(table)       # frdm95 | hfb14 panels
fig, axes = plot_deformation_chart(table)

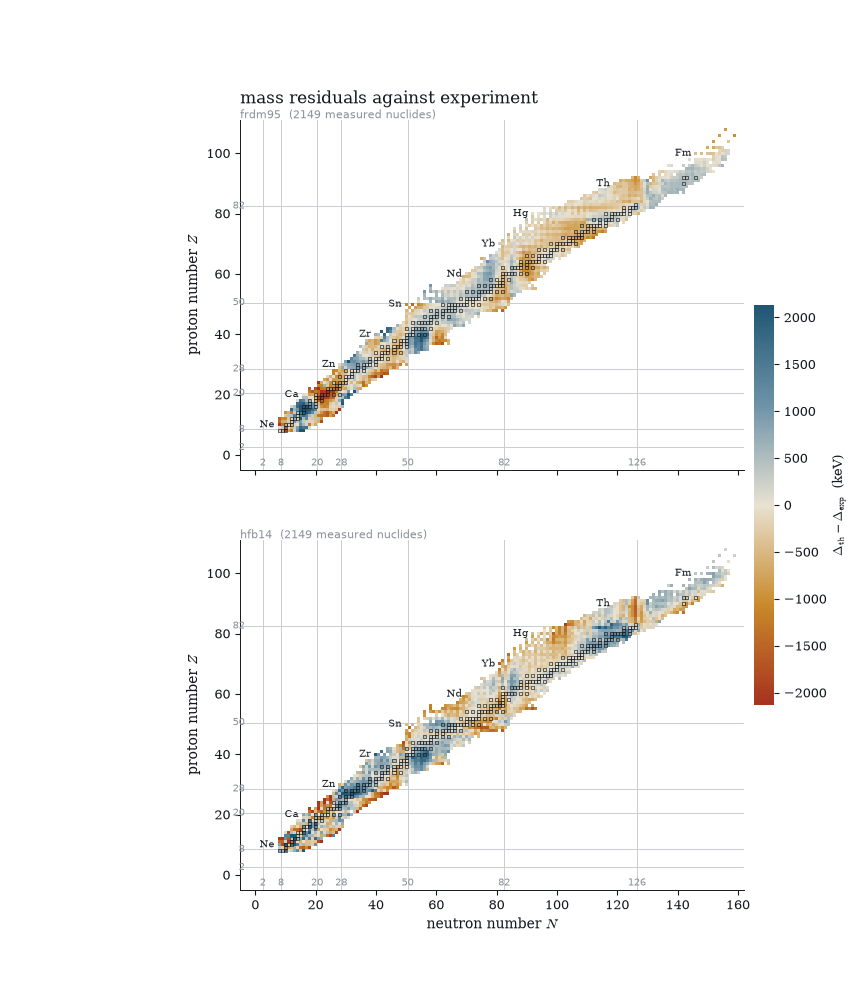

Theory minus experiment for both mass models against the same Audi experiment, one panel each, on one colour scale symmetric about zero so the ramp reads as signed error and the panels are directly comparable. The residual patterns land exactly on the magic-number gridlines the chart always draws — and the two models fail differently there, which is the point of showing them together: FRDM’s structure concentrates at the closures its macroscopic part misses, HFB-14’s error field is organised differently around the same lines. Only measured masses count as experiment; recommended_only entries are systematics and are excluded.

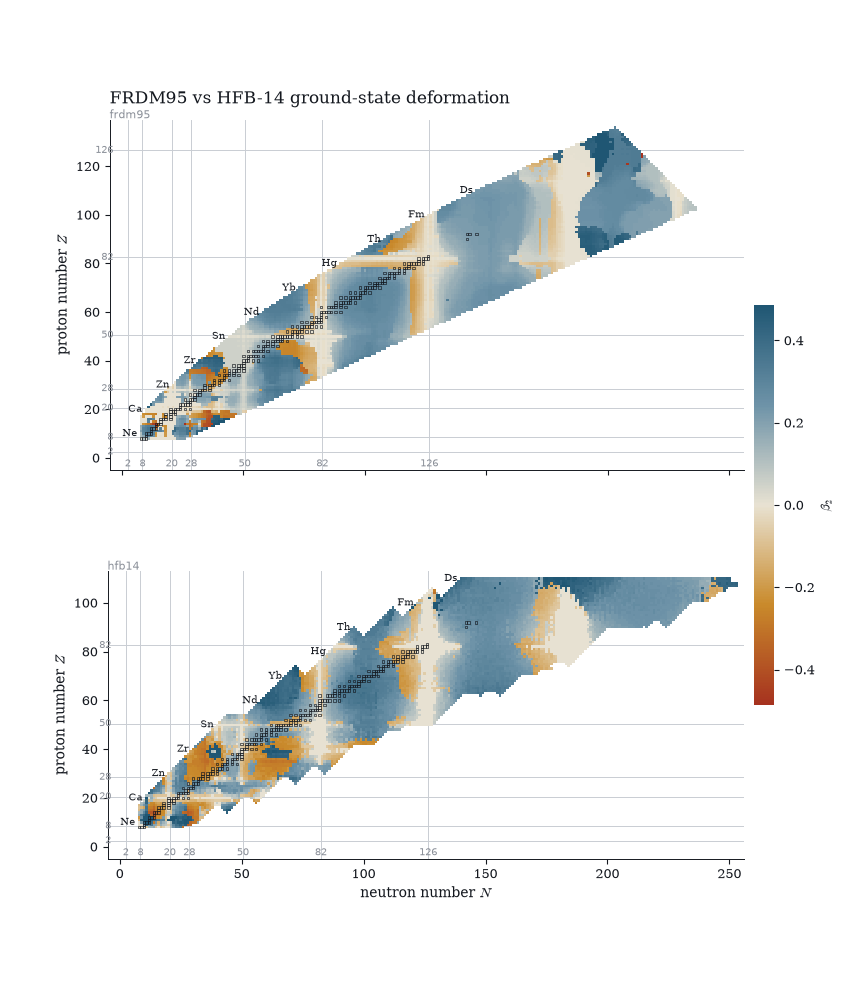

The same table coloured by ground-state β₂, FRDM95 above HFB-14: spherical stripes along the magic numbers, the rare-earth and actinide islands of deformation in blue, oblate pockets in orange. The models mostly agree on where deformation lives and disagree nuclide-by-nuclide where prolate and oblate minima are nearly degenerate — around ⁷⁴Nb both go oblate in a sea of prolate neighbours, the A ≈ 70–80 shape-coexistence region showing up as single flipped squares.

Resonance systematics

fig, axes = plot_resonance_charts(src.resonance_table())

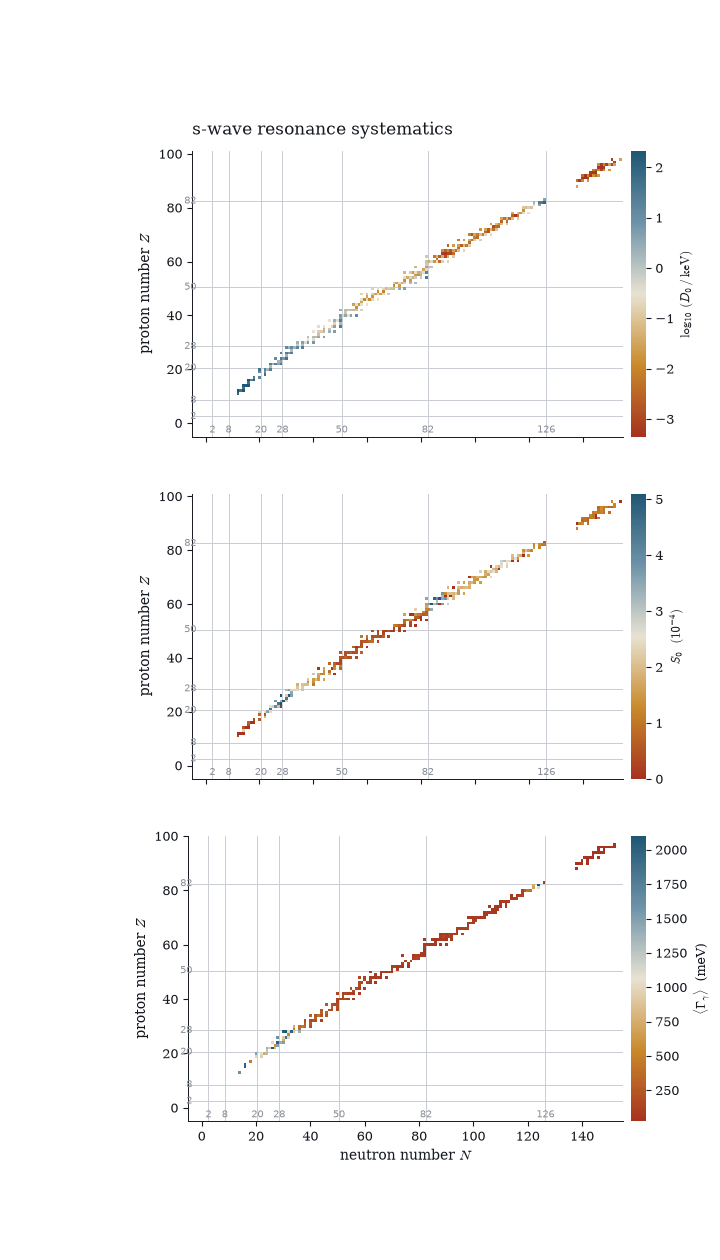

Three panels because the three quantities answer different questions: D0 is a level-density measurement (log colour — it spans five orders of magnitude from shell closure to mid-shell), S0 a doorway-state average, and the radiative width the temperature of the gamma cascade. The panels share the neutron axis, so the N = 28, 50, 82, 126 spikes in D0 line up under each other.

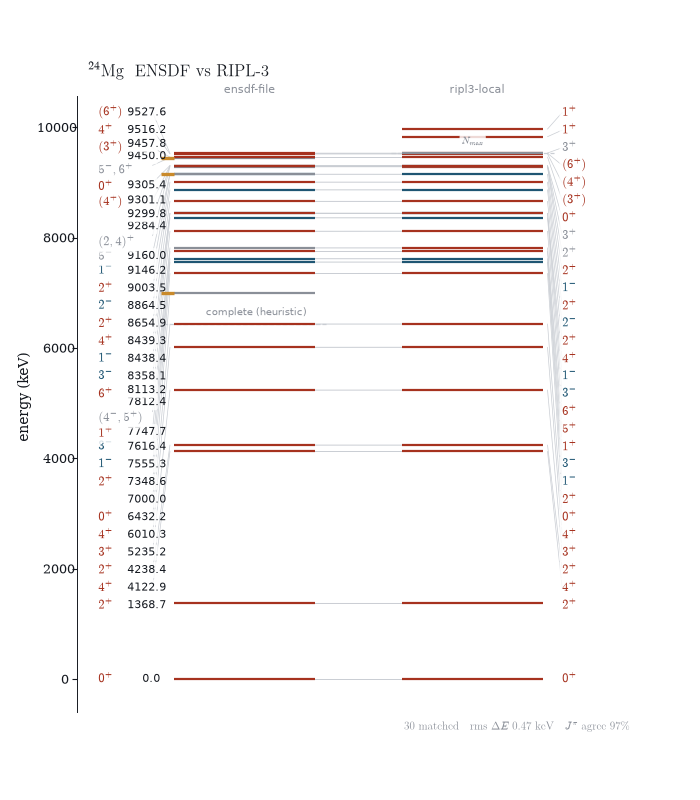

Comparing sources

comparison = el.compare.levels("24Mg", sources=("file", "ripl3"), below=10000)
fig, ax = plot_level_comparison(comparison)

The comparison nook.compare exists to make, drawn: matched levels joined across the gutter, levels only one source has ticked outward so a dropped level looks dropped, and both completeness cutoffs as dashed hairlines — our heuristic on the ENSDF side against RIPL’s own Nmax. Energies are labelled once, on the left: matched energies agree to a keV or better, and repeating them doubles the label load for no information. Side b labels its Jπ — the quantity that genuinely can differ.

One rule carries over from the parser: a spin the RIPL evaluators assumed (their g/c/n flags) is drawn grey whatever its parity, so RIPL’s statistical guesses never wear the colours of an evaluated assignment.

What is deliberately not drawn

Two RIPL segments have no figure. The optical-model archive is a table of potential coefficients, and nook does not evaluate V(r) — that is a reaction code’s job, and a coefficient table drawn as a curve would claim an evaluation that never happened. Per-level coupled-channel deformations are niche input whose story the β₂ chart already tells.
